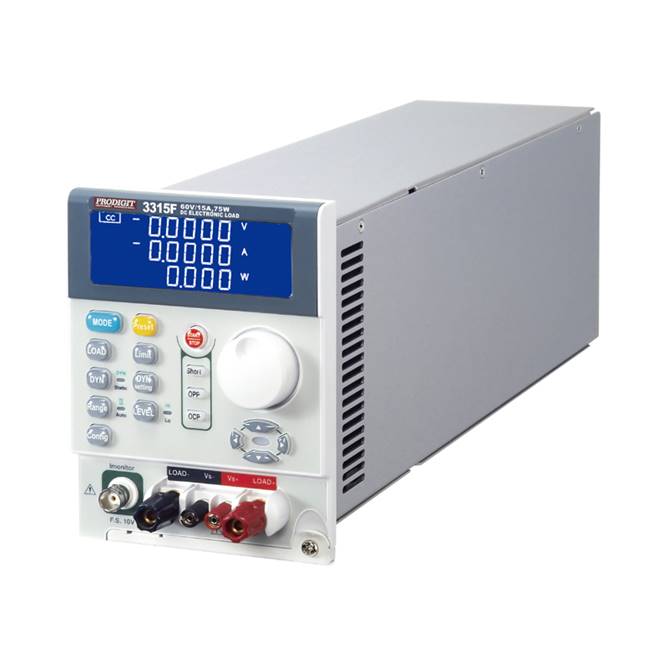

3315F
DC Electronic Load 60V, 15A, 75W
Description
l
Each 3310F Series module has its own control and display panel,
CC/CR/CV/CP/Dynamic modes, plug in 3300F with 150 sets Store/Recall memory
which provides load set-up more efficiently，also can be controlled intranet via
RS232、Ethernet、USB and GPIB
interface.
l
SHORT time setting and SHORT_VH, SHORT_VL setting function，also can measure
Short Voltage and Current.
l
Dynamic can be simulated under CC, CP mode. The current
Rise/Fall slew rate can be adjusted individually and there is an external
signal input so that load can have a simulated Arbitrary Waveform.
l
The additional OCP 、OPP test function operated by both
mainframe and module that will be more efficiency and accuracy on OCP, OPP
testing.
l
Programmable Load ON/OFF voltage, GO/NG meter check,
Voltage meter display “ + “ or “ – “ is selectable and 150 sets Store/Recall larger memory is much
advance feature for each different application.
l
150 sets test parameter and status storage function can
call the storage memory real time in accordance with the auto sequence
requirement.
l
Short, OCCP and OCDP function test for BMS protection
board is provided (option).
Features
l
5 digital V / A / W
Meter.
l
High-speed
measurement and communication transmission.
l
V.A.W. values can be
displayed simultaneously.
l
Large LCD Display、setting values can be adjusted by rotary knob or push button.
l
OCP 、 OPP test function.
l
Must be configured
in 3302F〔single channel mainframe〕3302F mainframe provides the NTC simulation test function（Option）、3305F〔two
channels mainframe〕or 3300F〔four
channels mainframe〕and the mainframe with 150 sets
Store / Recall memory.
l
Power ON status
value can be set.
l
Flexible CC. CR, CV,
CP, Dynamic and Short operation modes.
l
SHORT time setting
and SHORT_VH, SHORT_VL setting function.
l
Protections against
V, I, W, and °C.
l
Voltage meter
display the polarity positive（” ＋ ”）or negative（” － ”）is selectable.
l
SYNC. Load ON
function.
l
Optional Interface : GPIB、RS232、USB、LAN.
l
Support MPPT CC, CR,
CV test function for solar panel
l
Function test for
BMS protection board is provided (option)
l
New waveform
generator plug in model 9923 adds user programmable battery discharge current
waveform simulation to Prodigit DC Loads.

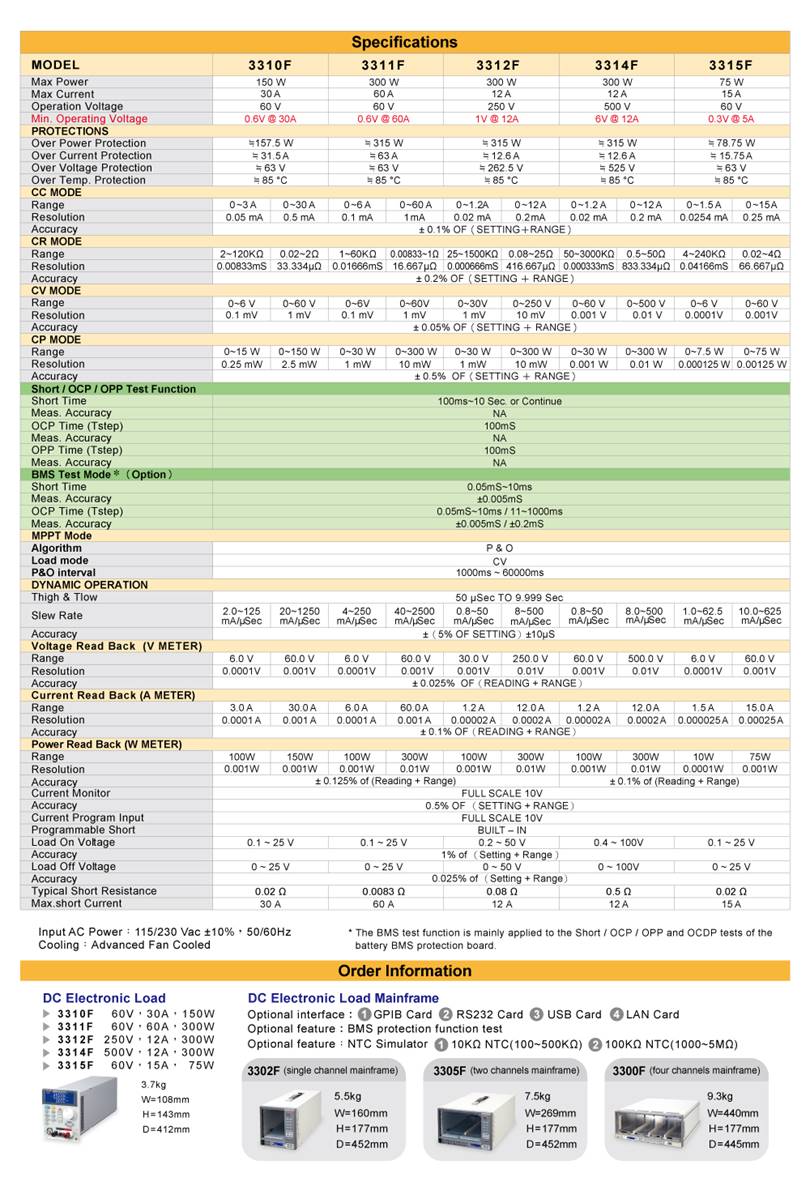

Specifications
